E-Bike Accelerator Throttle Handle High/Medium/Low

Name: E-Bike Accelerator Throttle Handle High/Medium/Low Speed/Forward/Reverse/Cruise
Brand: N/A
SKU: v1|157436659030|458917203862
Price: 19.94 USD
Availability: InStock

Speed/Forward/Reverse/Cruise

USD $19.94

Condition : New

Free Shipping

{{variant_type_name}} :

SKU: N/A This site contains affiliate links for which we may be compensated Categories: Sporting Goods / Cycling / Bicycle Components & Parts / Electric Bicycle Components

Notify me when the price drops

We will email you if we find a lower price on this product!

Target price (USD) $

Description

E-bike Controller 48V-72V 1000W-3000W 60A Dual Mode Sine Wave Motor SM Plug ES
94.49 USD
104.69 USD
Free shipping
10%
off
Decorative Cover Reflective Strips Side Shell for Xiaomi Mi 4 Ultra E-Scooter
14.94 USD
15.73 USD
Free shipping
5%
off
Rear Fender Mudguard Taillight Set For Segway Ninebot Max G2 Electric Scooter ES
26.88 USD
28.3 USD
Free shipping
5%
off
Handlebar Turn Signal Light for Segway Ninebot E2/E2 Pro E-Scooter Accessories
20.98 USD
22.08 USD
Free shipping
5%
off
Rear Fender Mudguard w/ Tail Light for Xiaomi 4 pro Electric Scooter Accessories
26.22 USD
27.6 USD
Free shipping
5%
off
Ulip 90/65-6.5 Off-Road Vacuum Tire Tyre Non-Slip for Zero 11X E-Scooter Upgrade
51.18 USD
53.87 USD
5.0 USD
5%
off
90/65-6.5 Metal Wheel Hub Rim Electric Scooter E-Scooter Upgraded Parts Black
54.64 USD
57.52 USD
Free shipping
5%
off
500W-5000W E-Bike Motor Screw M12 M14 Electric Bicycle Hub Motor Nuts Bushes Kit
9.05 USD
9.53 USD
Free shipping
5%
off
For Ninebot ZT3 Pro ZT3 Electric Scooter Unlock Speed Regulator Limit Cable Part
16.62 USD
17.49 USD
Free shipping
5%
off
E-bike Electric Bicycle Display KT LCD8SU Color Screen Display Panel SM/WP Plug
99.78 USD
105.03 USD
Free shipping
5%
off
E-Bike 48/52/60/72V 1000-3000W 60A Dual Mode Sine Wave Controller +Color Display
125.36 USD
131.96 USD
Free shipping
5%
off
E-bike Electric Bicycle Hub Motor Extension Cable 9Pin Male Female Wire 90-160cm
12.44 USD
13.1 USD
1.99 USD
5%
off

Product Description 1

Specifications:

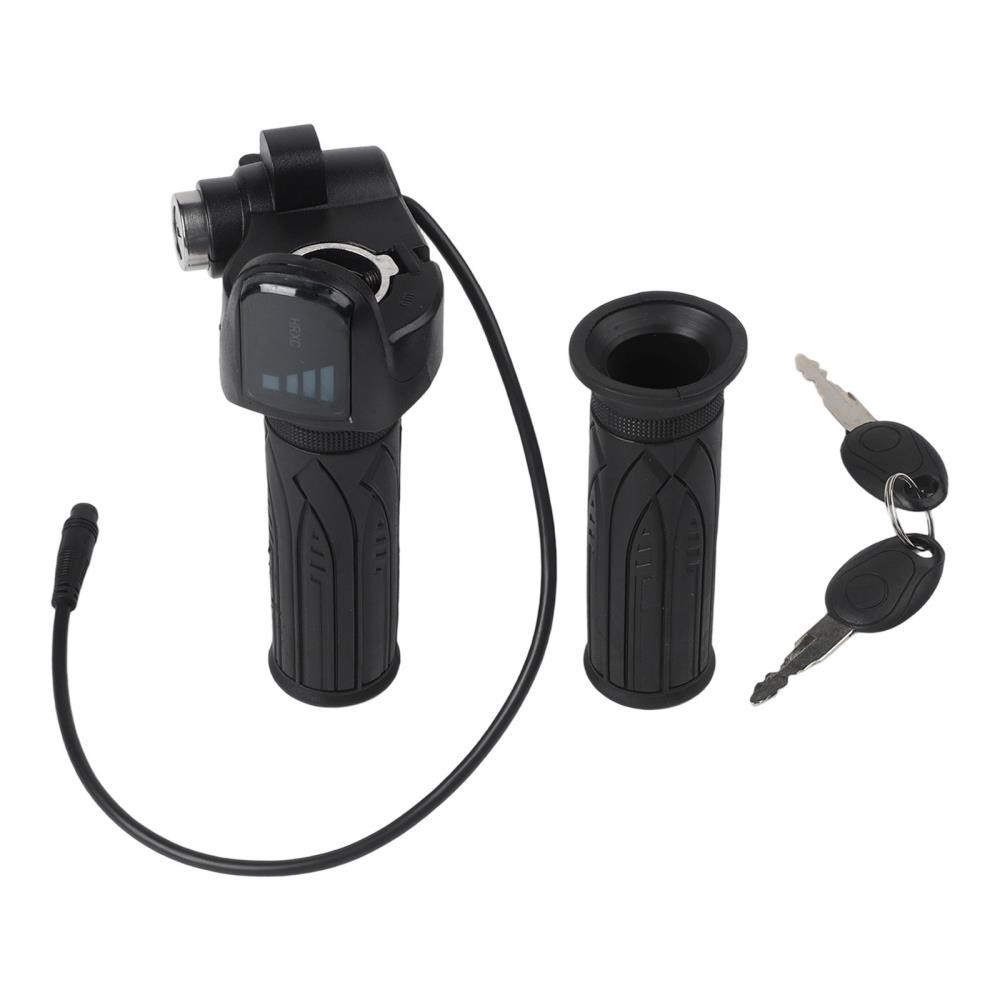

Product Name: Multi functional accelerator throttle handle
Color: Black
Size: As shown in the picture
Material: ABS+rubber
Suitable for handle diameter: ≤ 22mm
ApplyTo: Electric Bicycle, Electric Scooter, Balance Car, Electric Motorcycle, Electric Bicycle Accessories
NOTE:
Green is for throttle hall signal, red wire is for throttle +5v, black is negative wire; please connect according to controller function wire, U can not just match same color wire, if wrong connected that will damage your controller and throttle.
4 wires : yellow is for voltage display wire, connect with electric bike power positive.
5 wires: blue wire connect with controller power lock output wire, yellow wire connected with controller electric switch input wire power positive,
6 wires ; yellow connected with power positive, blue wire and white is is function wire(can work as reverse switch, horn switch, cruise switch, power lock and so on)
7 wires: yellow connected with power positive, blue is share wire, middle gear for 3 gears , white is high gear, brown is low gear.
The above is common wiring way, if need made to order please connect with salesperson.
For 12v electric bike, max voltage is about 12.6v, mini is about 9v or higher,
For 24 electric bike, max voltage is about 29.4v, mini is about 21v or higher,
For 36v electric bike, max voltage is about 42v, mini is about 29v or higher,
For 48v electric bike, max voltage is about 54.6v, /58.8v, mini is about 40v or higher,
For 60v electric bike, max voltage is about 72v, mini is about 49v or higher,
For 72v electric bike, max voltage is about 84v, mini is about 60v or higher,
For other electric bike with higher voltage there should be a voltmeter installed.

Package includes：
1*Multi functional accelerator throttle handle
